Calibration Equipment

Calibration is crucial for ensuring your sampling equipment is collecting accurate data. Tisch Environmental’s line of calibration equipment is designed to deliver reliable results, certified in our NIST traceable lab and built with high quality materials so your instruments operate efficiently and consistently.

X-Calibrator HiVol Calibrator

A high accuracy, field-friendly calibrator for PM10, PM2.5, TSP, and industrial hygiene high volume air samplers with instantaneous flow rate display using integrated ambient temperature and barometric pressure sensors.

Key features

  • 32-bit microprocessor for instantaneous flow calculation
  • Eliminates spreadsheets and manual calculations
  • Ambient temperature and barometric pressure sensors
  • Heavy duty, weather-proof carrying case

Available models

  • TE-HVC-V for TSP, PM10, PM2.5 samplers (25 to 50 CFM)
  • TE-HVC-P for PUF samplers (125 to 250 LPM)
TE-HVC-V X-Calibrator for TSP and PM10
TE-HVC-V
X-Calibrator for TSP, PM10, PM2.5

Flow rate: 25 to 50 CFM. Full color LCD display. Micro USB interface.

  • Use with: TSP, PM10, PM2.5 high volume air samplers
  • Power: 4 AA batteries or Micro USB
  • Includes: X-Calibrator, top loading adapter plate, carrying case, calibration certificate

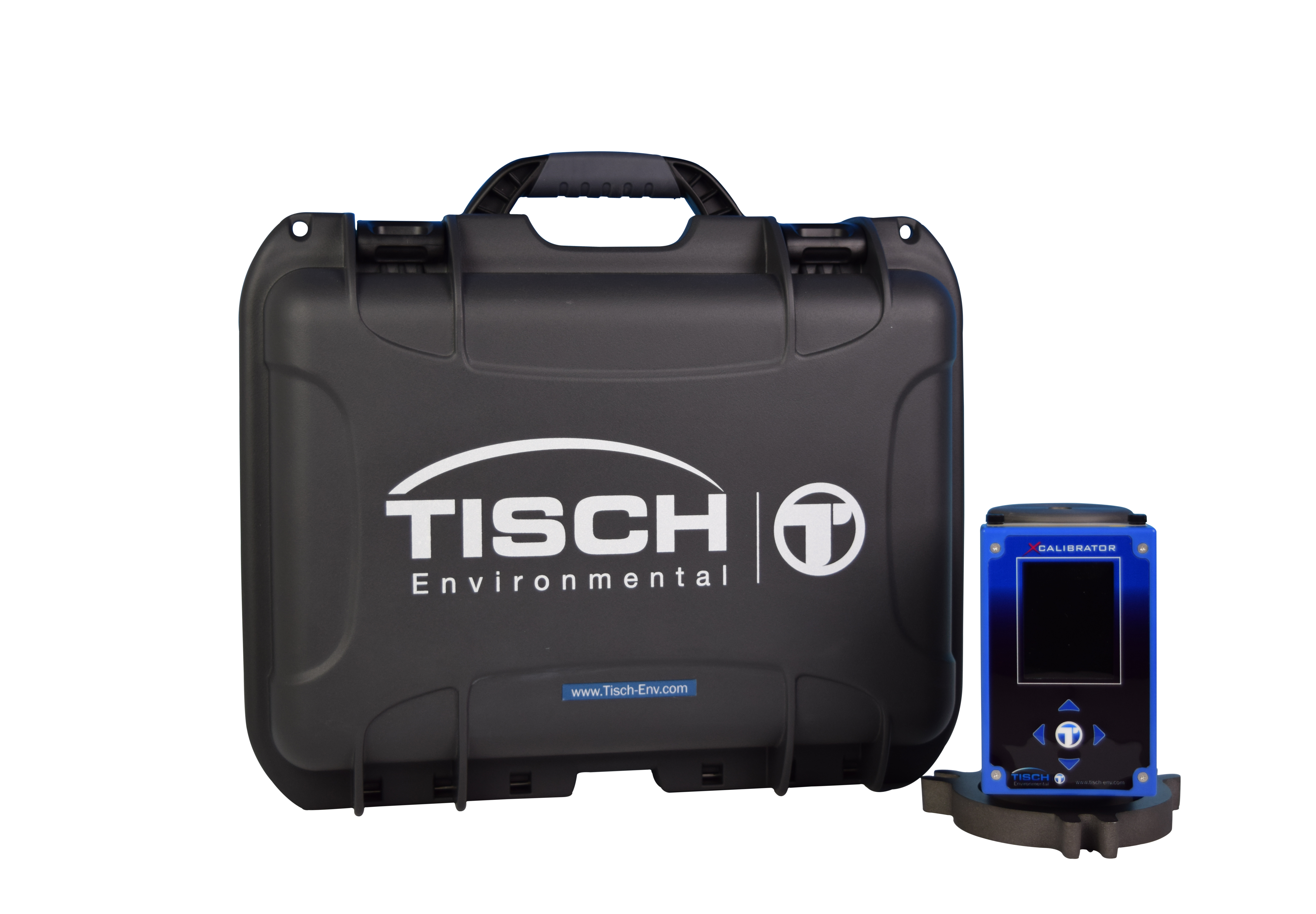

TE-HVC-P X-Calibrator for PUF
TE-HVC-P
X-Calibrator for PUF Samplers

Flow rate: 125 to 250 LPM. Full color LCD display. Field-ready design.

  • Use with: PUF high volume air samplers
  • Power: 4 AA batteries or Micro USB
  • Includes: X-Calibrator, carrying case, calibration certificate

Standard HiVol Calibrators (TSP, PM10, PUF)

High volume calibrators are required for accurate flow rate calibration on high volume TSP, PM10, PUF, and PM2.5 samplers. These calibrators use high quality aluminum orifices and include NIST traceable calibration certificates and rugged carrying cases.

Features

  • High quality aluminum orifice
  • NIST traceable calibration certificate
  • Heavy duty carrying case

Typical use

  • Routine field verification of sampler flow performance
  • Annual certification and compliance workflows
  • Setup options for standard and PLUS technology systems
TE-5028 Variable Flow Calibration Kit
TE-5028
Variable Flow Calibration Kit

TSP, PM10, PM2.5 samplers. 25 to 50 CFM.

  • Material: Aluminum
  • Includes: variable flow orifice, top loading adapter plate, NIST certificate, 30 inch water manometer, tubing, carrying case

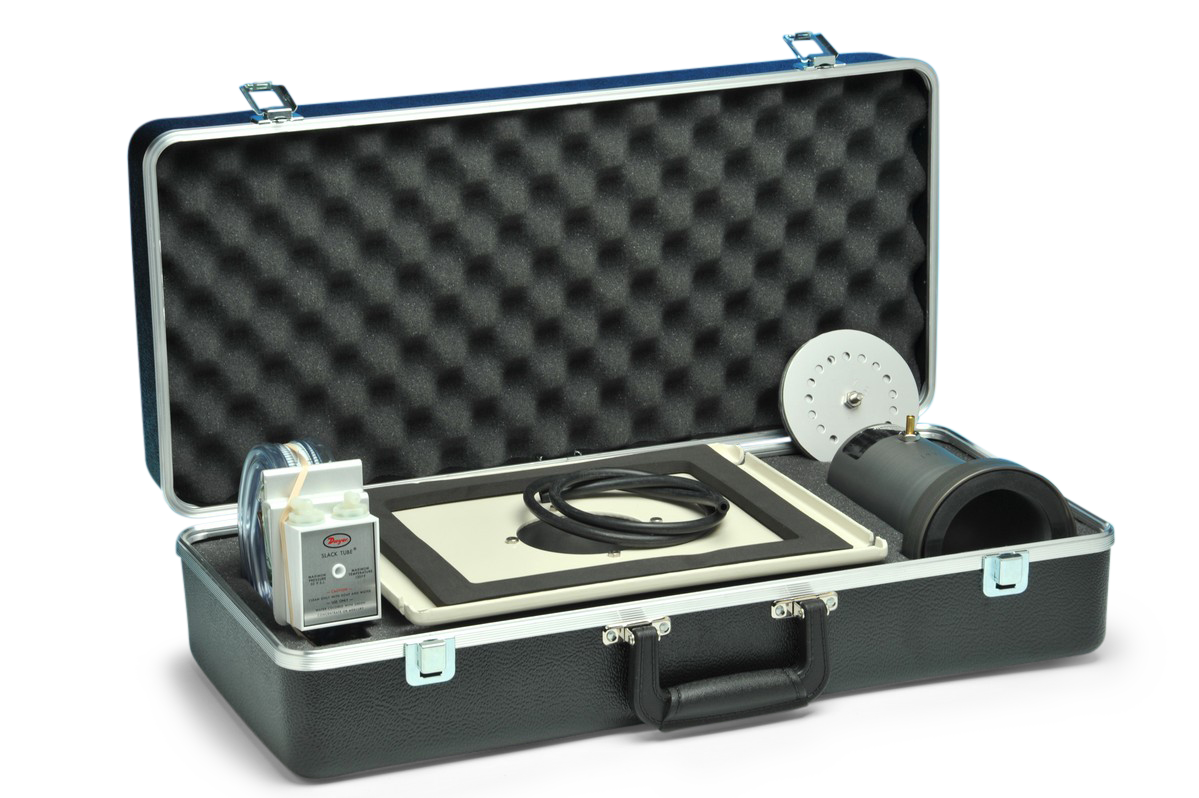

TE-5025 Calibration Kit With Load Plates
TE-5025
Calibration Kit With Load Plates

TSP, PM10, PM2.5 samplers. 25 to 50 CFM. Not for VFC systems.

  • Includes: calibration orifice, top loading adapter plate, load plates (5), NIST certificate, 30 inch water manometer, tubing, carrying case
  • Use with: standard high volume air samplers (non-VFC)

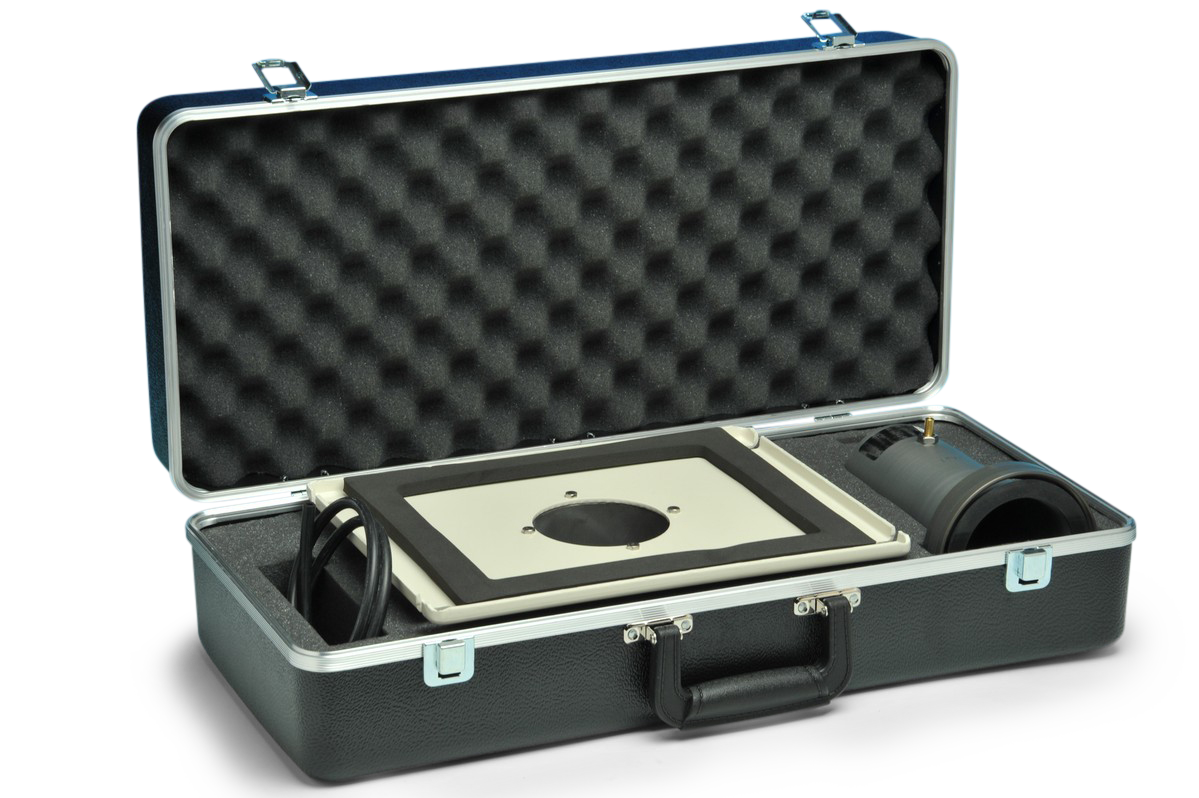

TE-5025HVP Calibration Kit for PLUS HIVOL
TE-5025HVP
Calibration Kit for PLUS HIVOL

PLUS technology systems. 25 to 50 CFM.

  • Includes: calibration orifice, top loading adapter plate, NIST certificate, tubing, carrying case
  • Use with: TSP, PM10, PM2.5 high volume samplers with PLUS technology

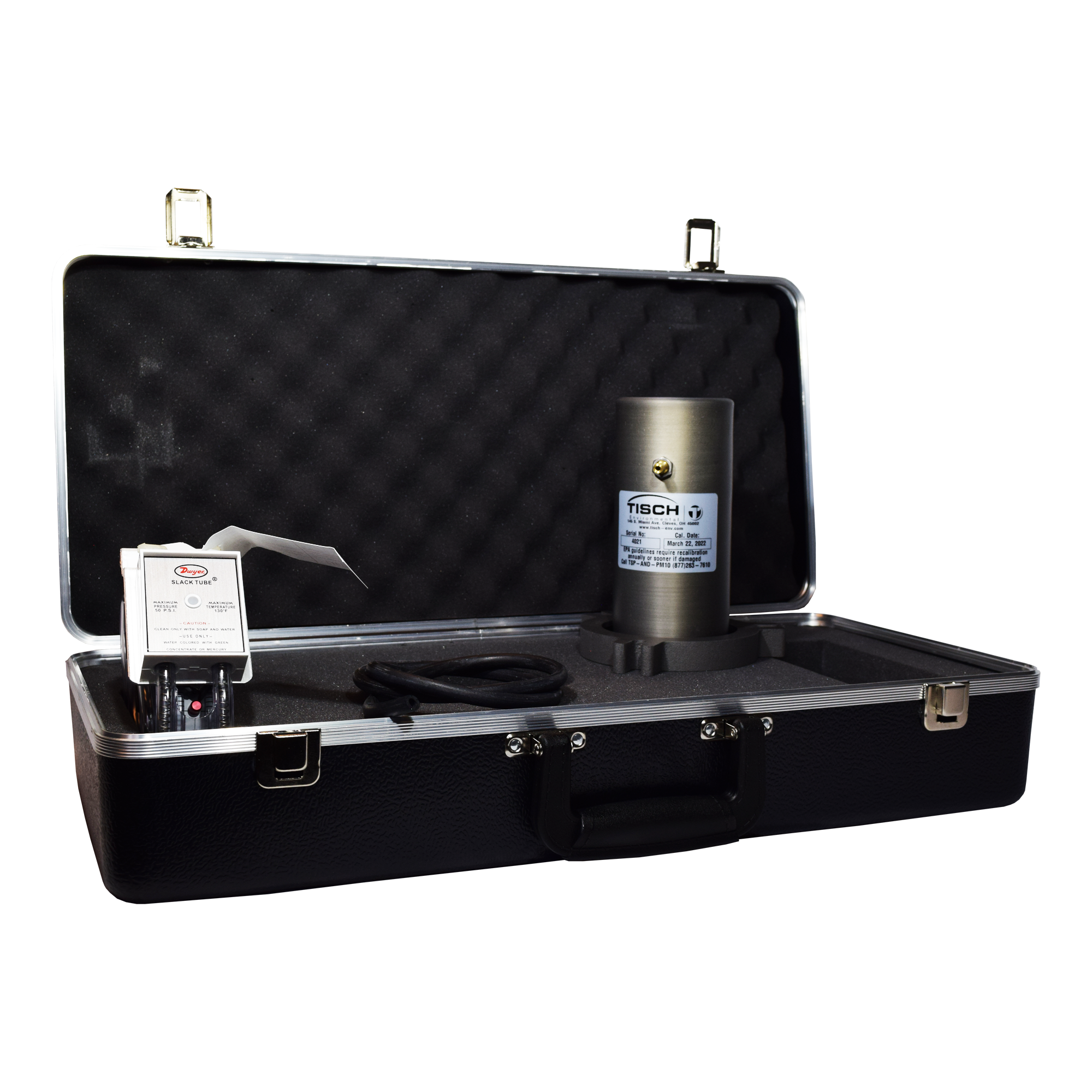

TE-5040 Calibration Kit for PUF
TE-5040
Calibration Kit for PUF

PUF high volume samplers. 125 to 250 LPM.

  • Includes: calibration orifice, 30 inch slack tube water manometer, tubing, carrying case, calibration certificate
  • Use with: PUF sVOC high volume air samplers

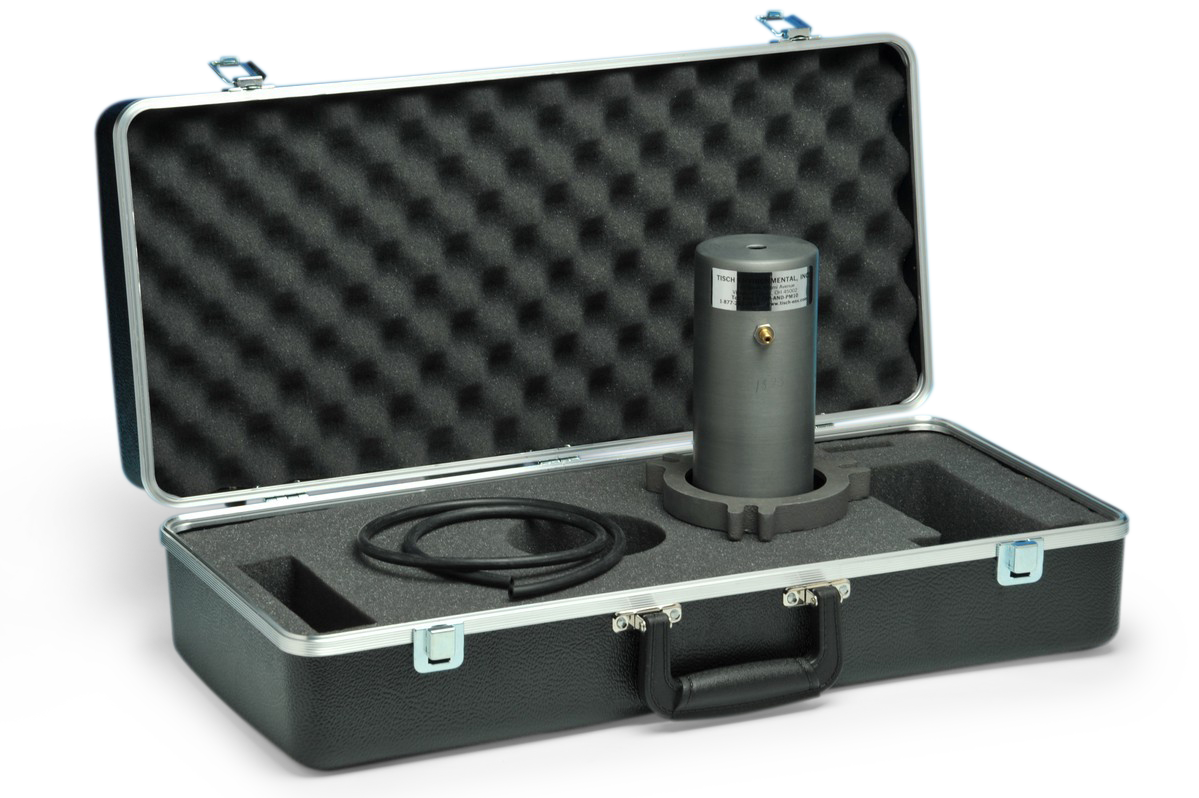

TE-5040PP Calibration Kit for PUF PLUS Systems
TE-5040PP
Calibration Kit for PUF PLUS Systems

PLUS technology PUF systems. 125 to 250 LPM.

  • Includes: calibration orifice, NIST certificate, tubing, carrying case
  • Use with: PUF high volume air samplers with PLUS technology

Low Volume Calibrator

The TE-PRO-CAL is a low volume calibrator designed for instruments operating at 16.67 LPM, including TE-Wilbur, BGI PQ200, Thermo Partisol, and similar samplers. It uses a precision-machined venturi to generate differential pressure proportional to flow rate and is not affected by temperature variations or humidity.

Features

  • Portable rugged design, battery powered, usable anywhere
  • Works with 16.67 LPM low volume samplers
  • Easy recertification with minimal downtime
  • Durable carrying case to protect the instrument

System specs

  • Flow rate: 5 to 20 SLPM
  • Power: portable with 4 AA batteries
  • Includes: calibrator, NIST traceable calibration certificate, 4 batteries, filter temperature probe, rugged carrying case

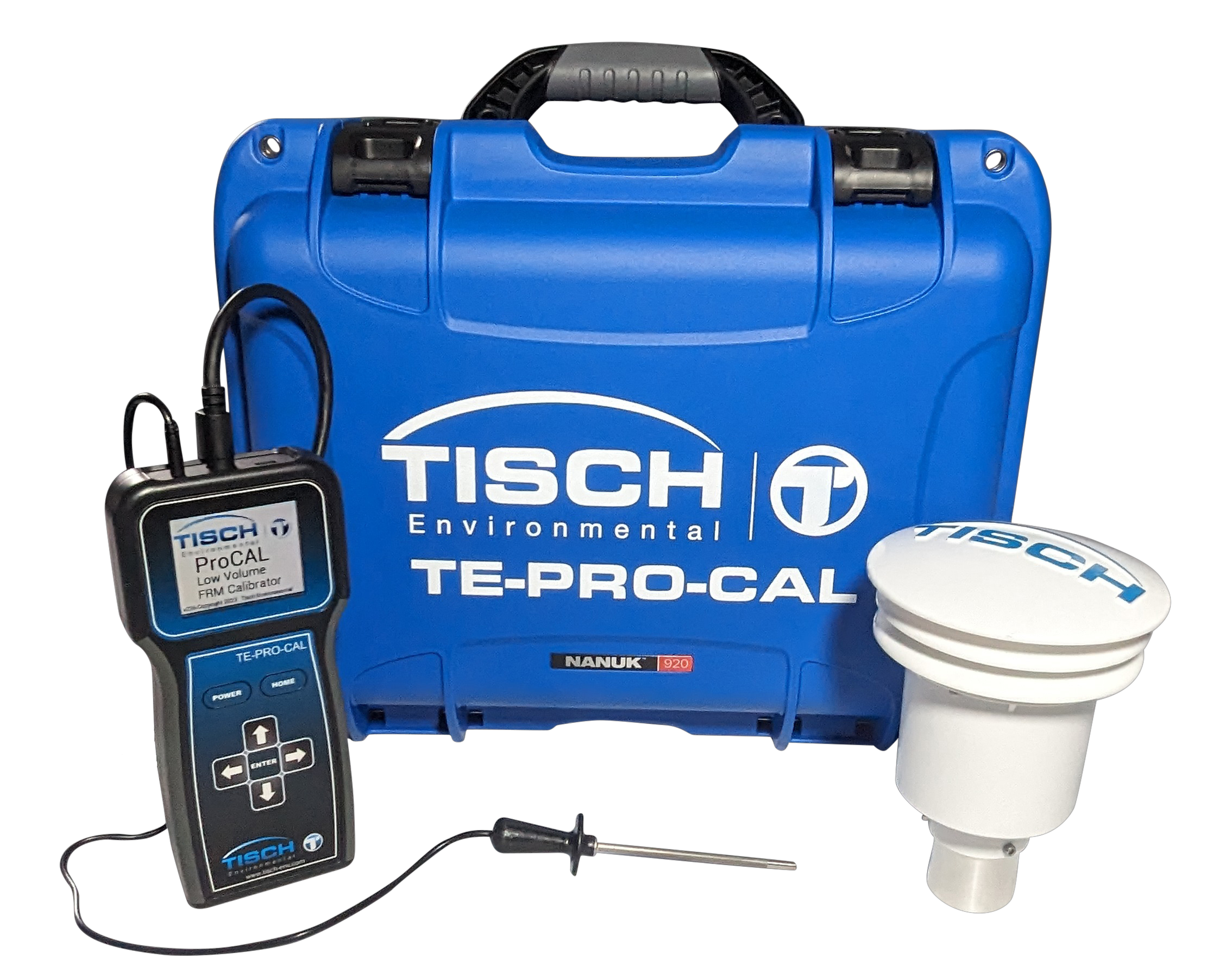

TE-PRO-CAL Low Volume Calibrator
TE-PRO-CAL
TE-PRO-CAL Low Volume Calibrator

Advanced low volume calibration for 16.67 LPM instruments with fast, field-ready setup.

  • Mounts directly to the inlet downtube for quick calibration
  • Venturi-based differential pressure measurement
  • Great fit for TE-Wilbur and other common 16.67 LPM platforms

Annual calibrator recertification

Many programs require annual recertification of calibration devices. If your orifice is damaged or modified, it should be re-certified right away. Our NIST traceable lab can keep your calibration equipment up to date with minimal downtime.
